Cantilever Structural Racks

Commodity name： Cantilever Structural Racks
Summary： The length of Cantilever structural racks can be adjusted freely according to the space in the factory.
Load： 200~1000kg/single arm, customised on request
Material： Q235/Q345
Material Thickness： 1.2mm~4.0mm

Cantilever structural racks price: telephone contact or online consultation Cantilever structural racks Contact Tel：+86-15861699908

Service Hotline:

86-15861699908

Get Quote

Related Products

Products
Shelf Video
General Parameters
FAQ
Shelf Case

Cantilever structural racks

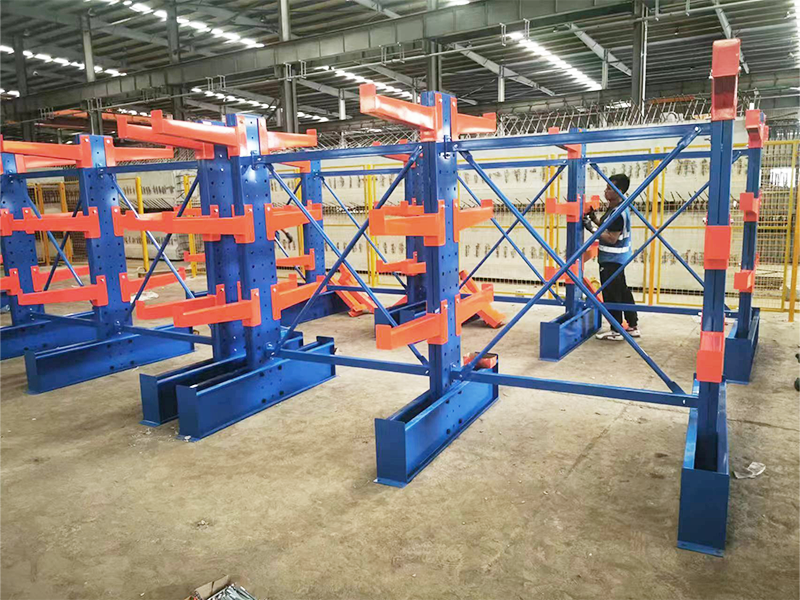

Cantilever structural racks is composed by installing cantilever on the column, which can be fixed or mobile. There are single arm and double arm cantilever, professional column profile, composed of square column piece, cantilever beam, connection, etc. The structure is light and stable; large loading capacity, high space utilisation, mainly suitable for storage of long, plate and ring-shaped materials. The forward-extending cantilever has stable structure, good loading capacity, convenient management and wide vision.

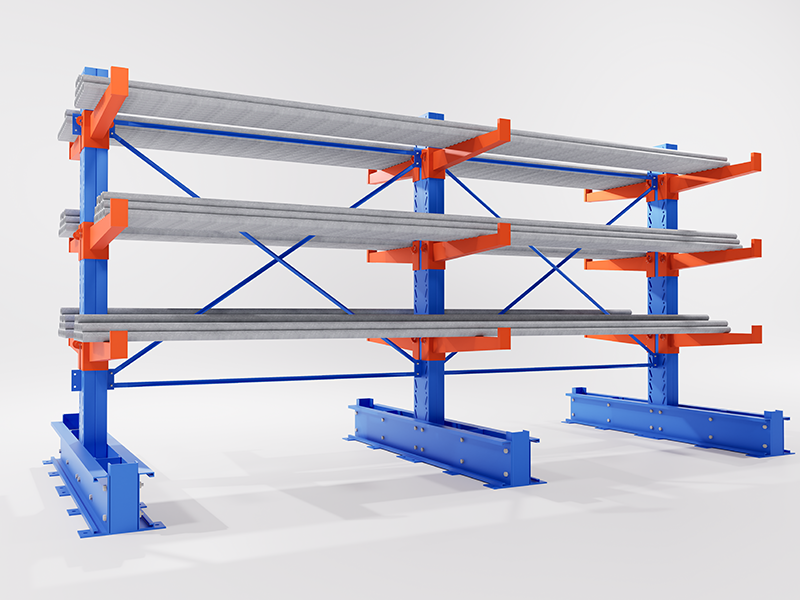

Single Cantilever Double Cantilever

Product Details

Product Features

1.Cantilever structural racks adopts combination type, which is easy and convenient for disassembling, transporting, adjusting, moving, etc. It is safe and reliable;

2.Adopting adjustable column, the spacing between the partitions can be adjusted and the partitions can be increased or decreased according to the actual needs;

3.Can fully improve the space utilisation rate, is the warehouse material management standardisation, standardisation, with stacker cranes and forklift trucks;

4.Cantilever structural racks length can be freely adjusted according to the factory space.

Load capacity	500~8000kg/layer, customised on request
Product Category	Single Cantilever, Double Cantilever
Pick-up method	Forklift access
Product Colour	Orange, Blue, White, Customizable
Access requirements	Based on forklift turning radius, also customised to customer requirements
Warehouse Requirements	Plant height is unlimited, customised according to the warehouse

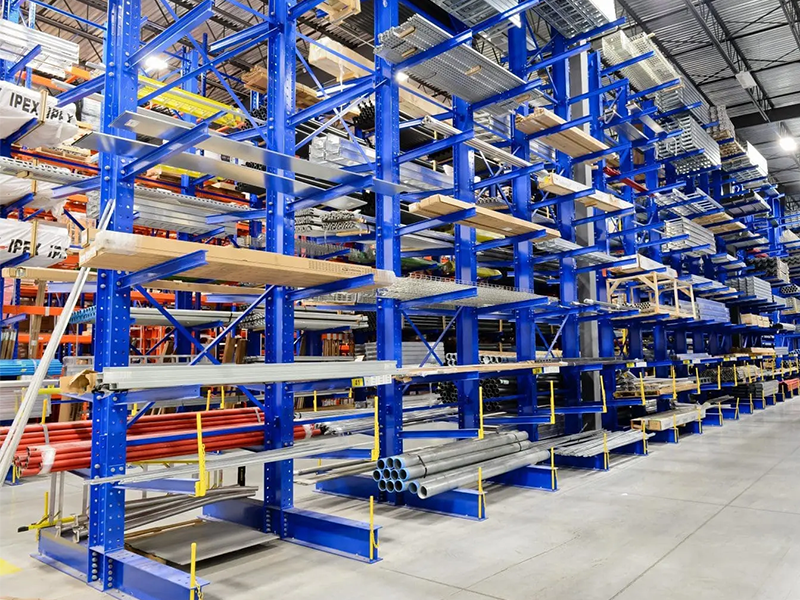

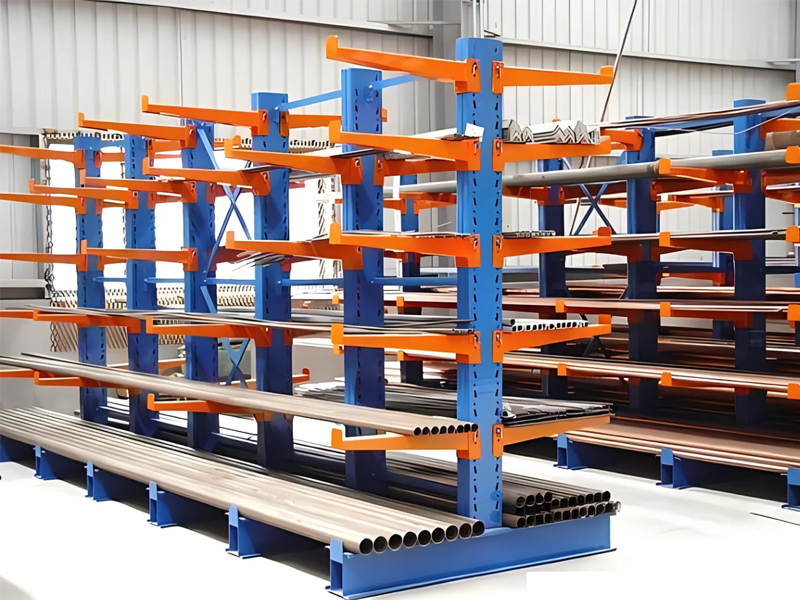

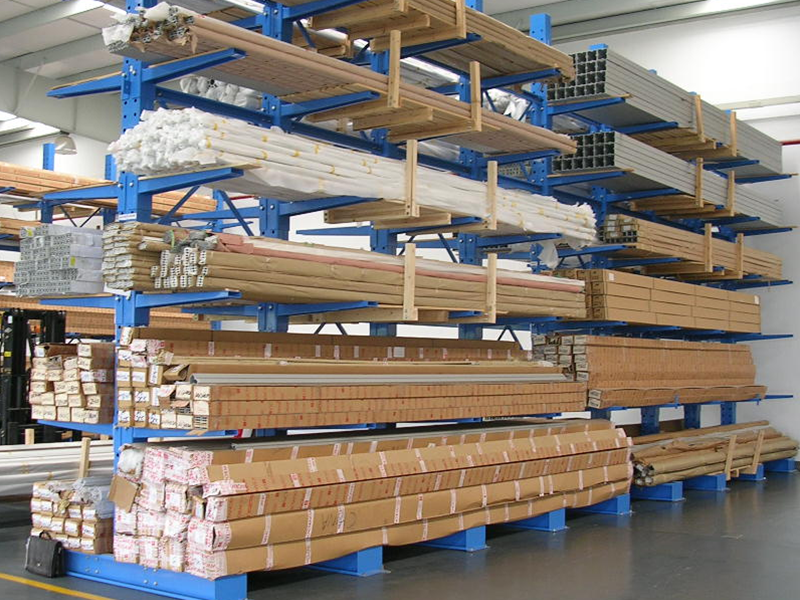

Scope of application	Used in machinery manufacturing industry and building materials, etc., suitable for storing long materials, ring-shaped materials, plates, tubes and irregular goods.
Product Advantage	Fully assembled structure, strong load bearing, stable structure, flexible storage.
Structure	Body base, column, cantilever, connecting rod, connecting rod holder

F：天扬货架是贸易还是工厂？生产基地在哪里？

Q：天扬货架是一家专业从事仓储货架及仓储设备的研发、生产、销售、安装于一体的制造型生产厂家，我们的生产基地位于中国江苏省南通市，我们工厂地址在江苏省南通市海安市城东镇戚庄四组天扬货架厂。

F：公司生产的货架用的什么材质？

Q：天扬货架与宝钢等国内知名大型钢厂合作，采用的是冷轧钢Q235-B，硬度达到2H。

F：假如我有个仓库，我不知道我选用哪款货架合适，怎么办？

Q：我们公司有专业的设计团队，可以免费提供设计方案，客服经理一对一服务，天扬货架专业技术人员会免费上门测量并与您详细沟通，了解您的需求，从而设计出合理的适合您的货架存储方案。

F：我们的产品重量有的达到几吨，形状不一，大小不一，你们能有合适的货架吗？

Q：可以的，天扬货架是根据您的货物重量，技术人员采用力学分析来选材，保证货架结构稳固，能够承受数吨的重量。我们可以为不规则形状的产品设计特殊的托盘或隔板，以确保产品在货架上能够稳固放置。

F：购买你家货架后能开发票吗？

Q：可以的，天扬货架根据国家相关规定，开具增值税发票。

F：你家生产的货架售后和质保时长多久呢？

Q：天扬货架产品质保10年，每年天扬技术人员会免费定期上门检测货架的使用情况，7*24小时售后服务，省内24小时到达现场。

F：我选择你们，你们给我提供怎样的服务？

Q：天扬货架通常提供定制服务，根据客户的具体需求设计和制造货架。这包括确定货架的尺寸、承重能力、层数、颜色等。定制服务可以确保货架与仓库环境完美匹配，提高仓库的存储效率和空间利用率。
