Multi-tier Racking System

Commodity name： Multi-tier Racking System
Summary： Cargo can be transported on hydraulic lifting platforms, ladders or forklift trucks.
Load： 200kg~2000kg/space
Material： Q235/Q345
Material Thickness： 1.2mm~4.0mm

Multi-tier Racking System price: telephone contact or online consultation Multi-tier Racking System Contact Tel：15861699908

Service Hotline:

86-15861699908

Get Quote

Related Products

Products
Shelf Video
General Parameters
FAQ
Shelf Case

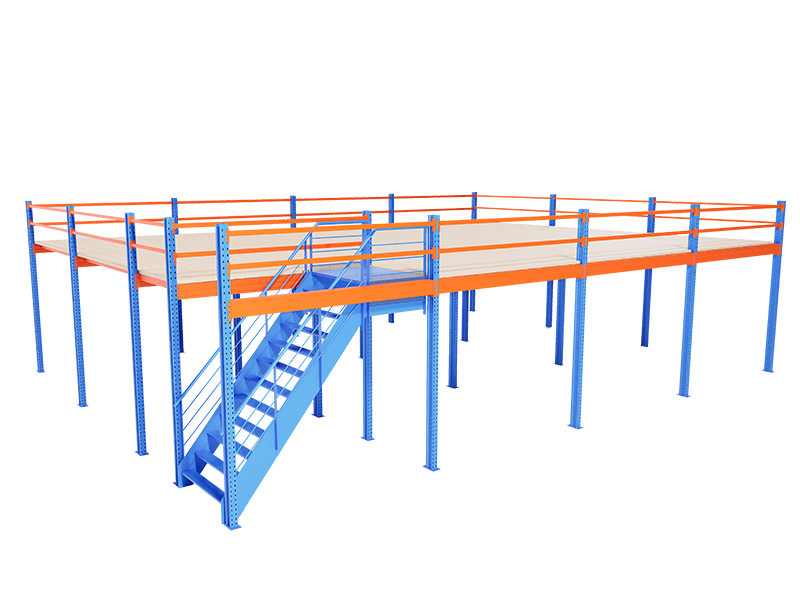

Multi-tier Racking System

Multi-tier Racking System， also known as working platforms or shelving platforms, are usually composed of beams, columns, plates and other components made of steel sections and plates. The parts are connected with welds, screws or nails. It is a fully assembled structure, flexible design, can be designed and manufactured according to different site conditions to meet the site requirements, the use of functional requirements and to meet the logistics requirements of the steel structure platform, in the current storage is more widely used.

Structure Plan

Product Details

Product Features

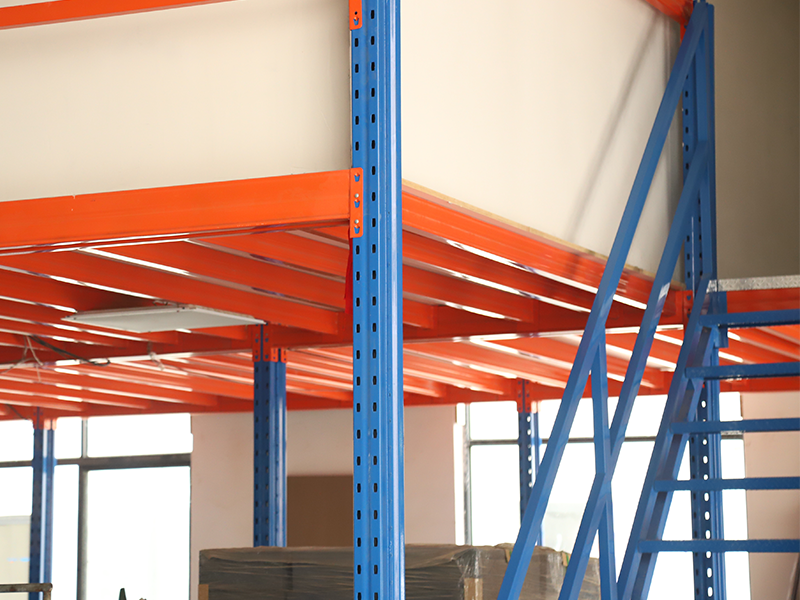

1.The steel structure platform is mainly composed of columns, main beams, secondary beams, floor panels, stairs and guardrails. It is assembled as a whole without on-site welding;

2.Steel structure platform usually has a carrying capacity of 200kg~1000kg/square metre, and the columns choose round tubes with strong carrying capacity and less steel; the main and secondary beams can choose the most economical and reasonable H-beam in the steel structure project according to the need of carrying; the floor panels are made of cold-formed patterned steel plates or hollowed out plates;

3.The Warehouse Mezzanine Platform Racking Systemadopts buckled plate structure and is fixed with the main and secondary beams steel, the whole platform structure has strong integrality, and different floor panels can be selected according to the actual need to meet the requirements of fire fighting or anti-dust and anti-falling of small parts. The underside of the floor can also be equipped with lighting system according to the need;

4.cargo transport can choose hydraulic lifting platform, cargo ladder or forklift;

5.All materials are high-quality carbon structural steel, fully automatic surface spray anti-corrosion treatment, superior load-bearing performance, simple and generous appearance, widely used in various industries.

Scope of application

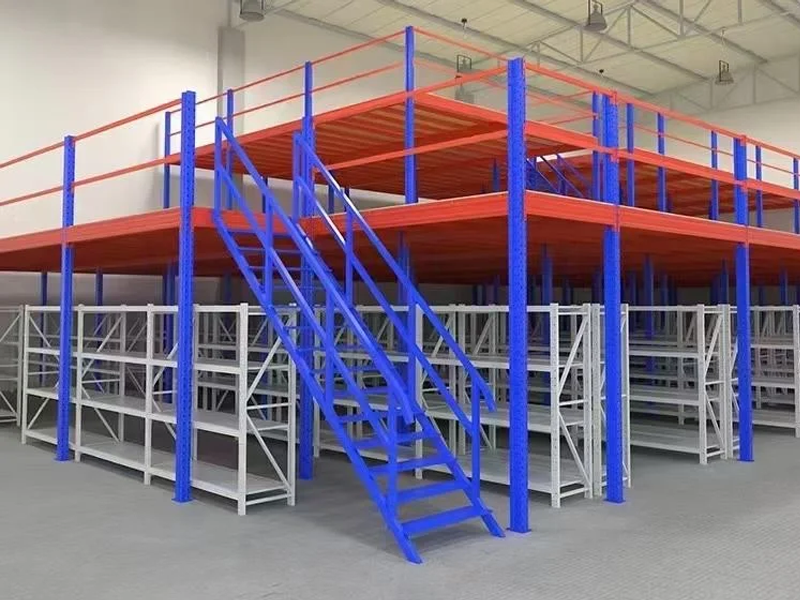

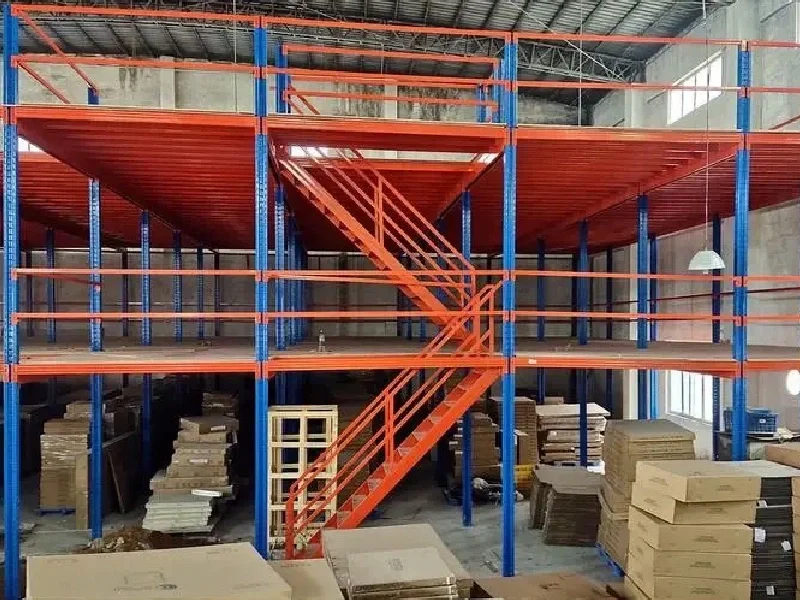

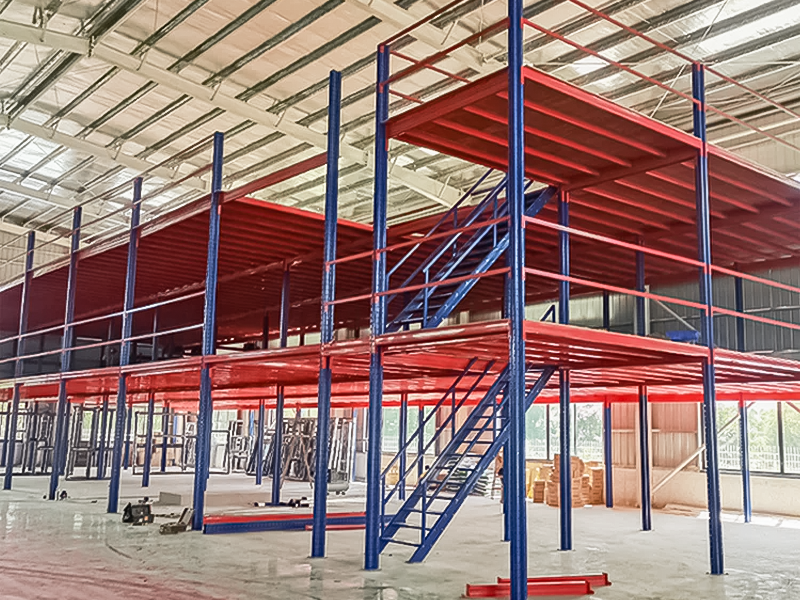

The steel structure platform can double the storage area of the warehouse, and the upstairs or downstairs can also be used as warehouse office. It is mainly suitable for logistics, machinery manufacturing and other industries. A lot of equipments can be installed on the steel structure platform, such as lifts, slides, conveyors, etc., which can be used to improve the work of the warehouse.

Carrying capacity	300kg~1500kg/per square, can be customised according to requirements
Pickup method	Goods are usually conveyed to the second or third floor by forklift trucks, hydraulic lifting platforms and conveyor belts, and then delivered by flatbed trucks or pallet trucks to the designated locations
Product Colour	Orange, blue, white, customizable
Access requirements	Customised to customer requirements
Warehouse requirements	Warehouse height of 4.5m or more
Scope of application	Applicable to the storage of goods with few varieties and large batch types, widely used in large quantities, few varieties of goods storage, goods require uniform packaging, single product, such as: food, tobacco, cold chain and other warehouses
Product Advantage	Faster construction, moderate cost, high space utilisation and easy loading and unloading compared to concrete platforms.
Framework	Primary beams, secondary beams, columns, inter-column supports, and ladders and railings

F：What are the terms of your deal?

Q：1.Payment terms: T/T 30% deposit upon order confirmation, 70% balance upon bill of lading. Or L/C.

2.Delivery time: normally within 30 days of receipt of deposit.

3.Sample Policy: Samples are always available for each model. Samples can be ready within 7-15 days after payment is received.

4.Port of shipment: Shanghai, China.

5.Discounts: We offer discounts for large quantities.

F：How do I deliver my goods?

Q：1.Sea freight: Once we know the seaport where you will deliver the goods, we will update the sea freight charges.

2.Customer Nominated Agent: Please let us know the contact information of your shipping agent and we will arrange for delivery of the items.

F：What are your services?

Q：1.We will respond to your inquiry about our products or prices within 24 hours.

2.Trained and experienced staff answer all your inquiries in fluent English.

3.OEM and ODM, any of your customized racks we can help you design your products.

4.We have experienced and professional engineers to provide the best solution.

F：How can I buy your products?

Q：Design drawing→Confirm drawing→Quotation→PI→Confirm PI→Arrange 30% deposit→Manufacturer→QC inspection→Payment of balance→Delivery

F：What are your strengths

Q：1.Warranty: one year warranty, damaged parts will be replaced and sent to you.

2.FACTORY PRICE: Factory direct competitive price.
