Drive-Through Racking Systems

Commodity name： Drive-Through Racking Systems
Summary： It is a kind of whole shelf that is not divided by aisle and has continuity.
Load： 200~1500kg per layer, customised on request
Material： Q235/Q345
Material Thickness： 1.2mm~4.0mm

Prices of Drive-In Racking ：contact us by phone or consult us online Drive-In Racking contact number: +86-15861699908

Service Hotline:

Drive-Through Racking Systems

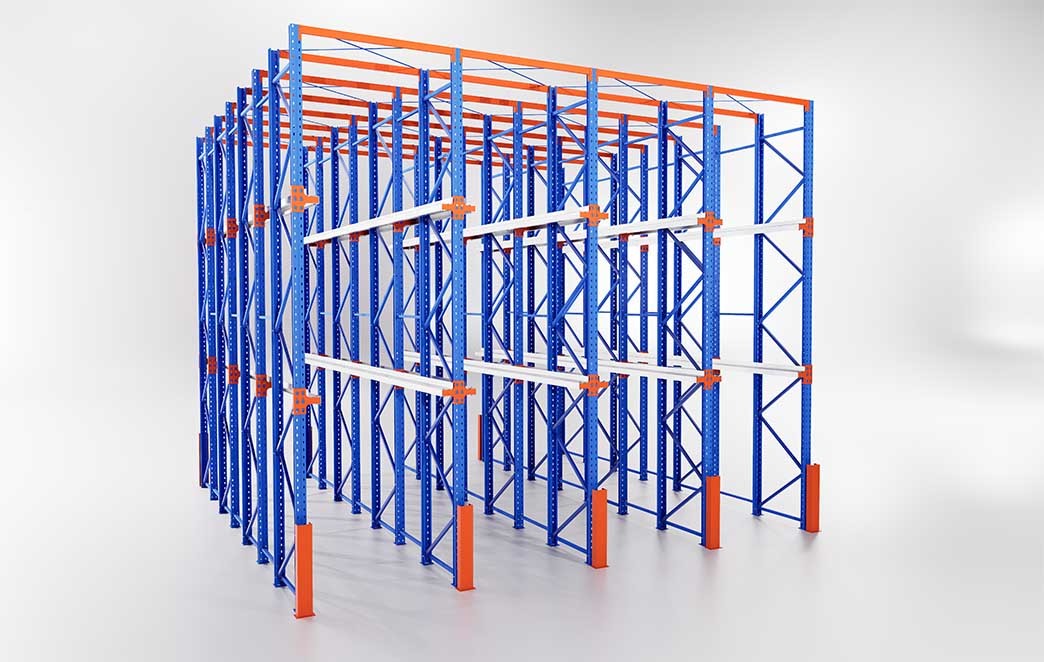

Drive-In Racking is a kind of overall racking that is not divided by aisles and is continuous. Through-racking in the same space than the usual beam-type racking almost double the storage capacity, because the cancellation is located in the rows of shelves between the aisle, the shelves will be merged together, is the same floor, the same column of goods next to each other to maximise the expansion of the utilisation rate.

Product Details

Product Features

1.The goods storage channel is also a forklift storage channel, is a form of high density storage rack;

2.Is usually used for less varieties but large batches, and the goods picking requirements are not high goods storage;

3.To ordinary forklift lifting height, through the corridor shelves for three layers of goods for the conventional programme calculations, the effective storage capacity of the warehouse can be increased by more than 100 per cent, compared to the investment costs have been controlled, the benefits of a significant increase. Calculated from the global storage costs, generally within three years of the increased storage capacity benefits can offset the investment costs;

4.Goods follow the principle of first-in-last-out, applying most of the handling machinery storage and transport operations.

Carrying capacity	500kg~2000kg/position, can be customised on request
Pickup method	Forklift access
Product Colour	Orange, blue, white, customizable
Access requirements	Customised to customer requirements
Warehouse requirements	The ground level should be good
Scope of application	Applicable to the storage of goods with few varieties and large batch types, widely used in large quantities, few varieties of goods storage, goods require uniform packaging, single product, such as: food, tobacco, cold chain and other warehouses
Product Advantage	Each level can be adjusted in height to store goods of different specifications, high-density storage, easy access to goods.
Framework	Cross ties, beams, column tabs, floor rails, bull legs, floor rail foot guards

F：What are the terms of your deal?

Q：1.Payment terms: T/T 30% deposit upon order confirmation, 70% balance upon bill of lading. Or L/C.

2.Delivery time: normally within 30 days of receipt of deposit.

3.Sample Policy: Samples are always available for each model. Samples can be ready within 7-15 days after payment is received.

4.Port of shipment: Shanghai, China.

5.Discounts: We offer discounts for large quantities.

F：How do I deliver my goods?

Q：1.Sea freight: Once we know the seaport where you will deliver the goods, we will update the sea freight charges.

2.Customer Nominated Agent: Please let us know the contact information of your shipping agent and we will arrange for delivery of the items.

F：What are your services?

Q：1.We will respond to your inquiry about our products or prices within 24 hours.

2.Trained and experienced staff answer all your inquiries in fluent English.

3.OEM and ODM, any of your customized racks we can help you design your products.

4.We have experienced and professional engineers to provide the best solution.

F：How can I buy your products?

Q：Design drawing→Confirm drawing→Quotation→PI→Confirm PI→Arrange 30% deposit→Manufacturer→QC inspection→Payment of balance→Delivery

F：What are your strengths

Q：1.Warranty: one year warranty, damaged parts will be replaced and sent to you.

2.FACTORY PRICE: Factory direct competitive price.
