Die Storage Rack


  • Commodity name: Die Storage Rack
  • Summary: Bolt connection, stable structure, safe and reliable, generally used in rows.
  • Load: 200~1500kg per layer, can be customised according to requirements
  • Material: Q235/Q345
  • Material Thickness: 1.2mm~4.0mm
Die Storage Rack Price: Contact us by phone or consult online Die Storage Rack Contact Tel:+86-15861699908

Service Hotline:

  • Products
  • Shelf Video
  • General Parameters
  • FAQ
  • Shelf Case
  • Die Storage Rack

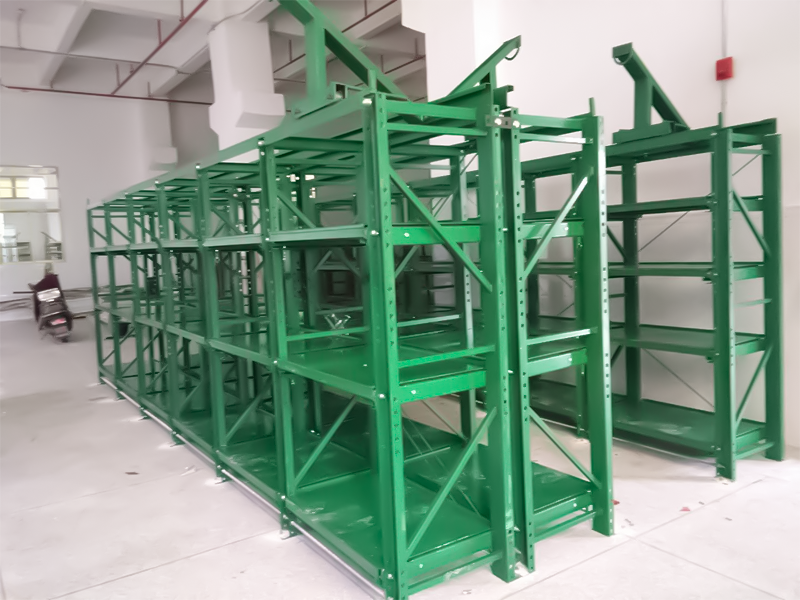

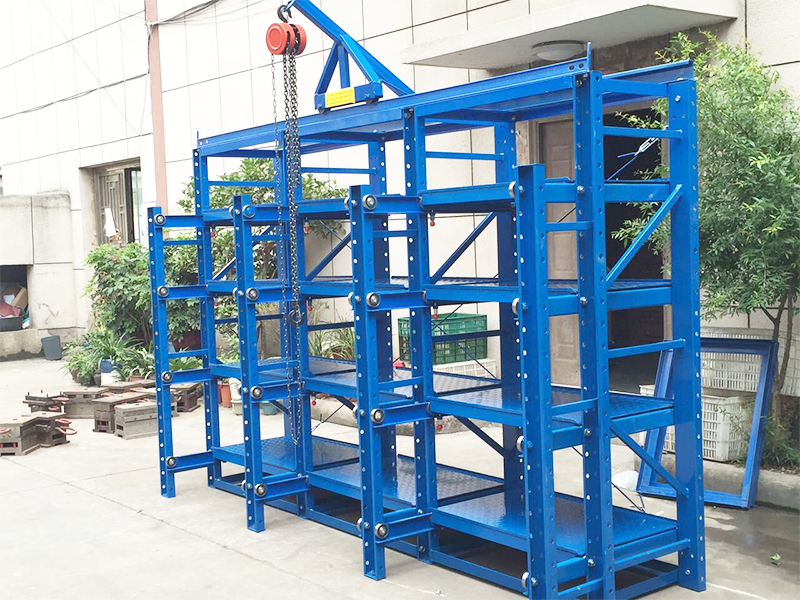

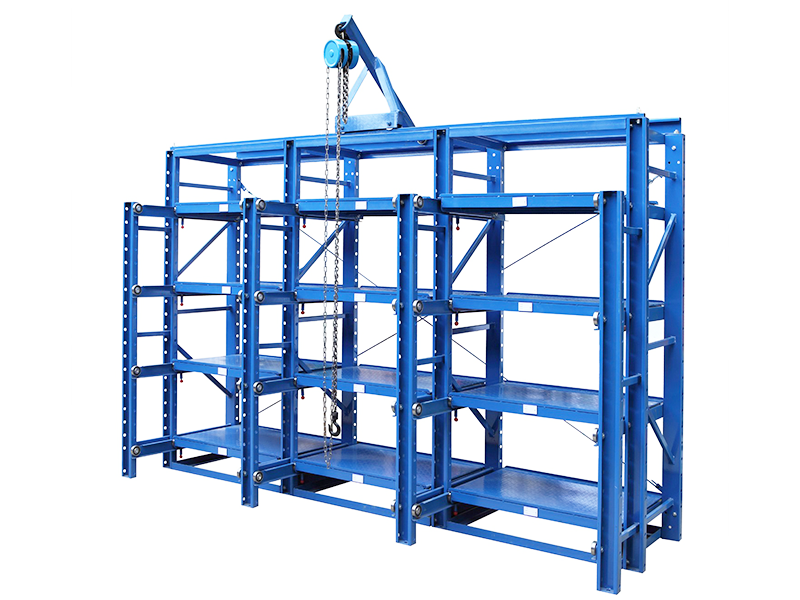

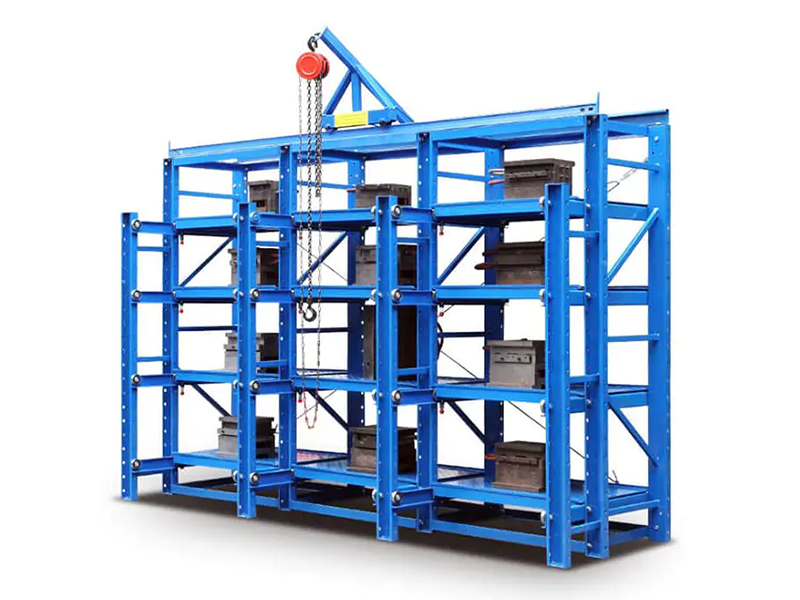

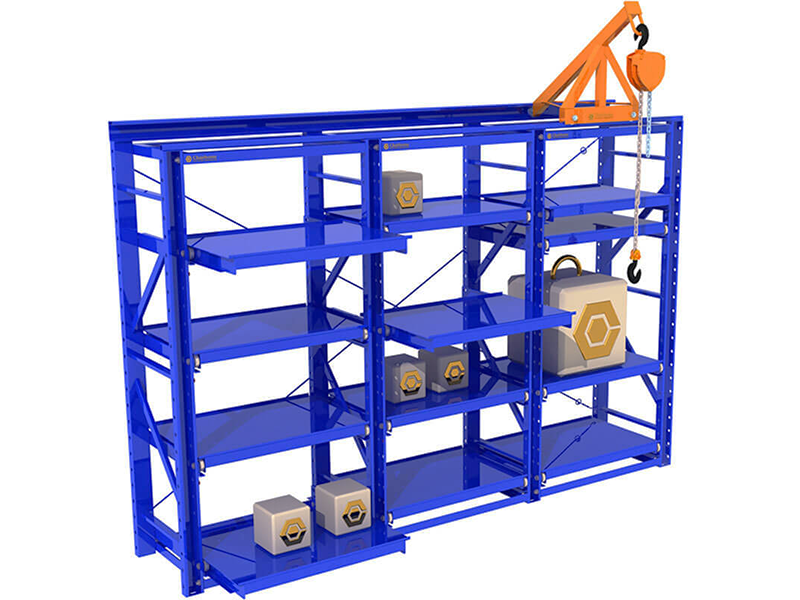

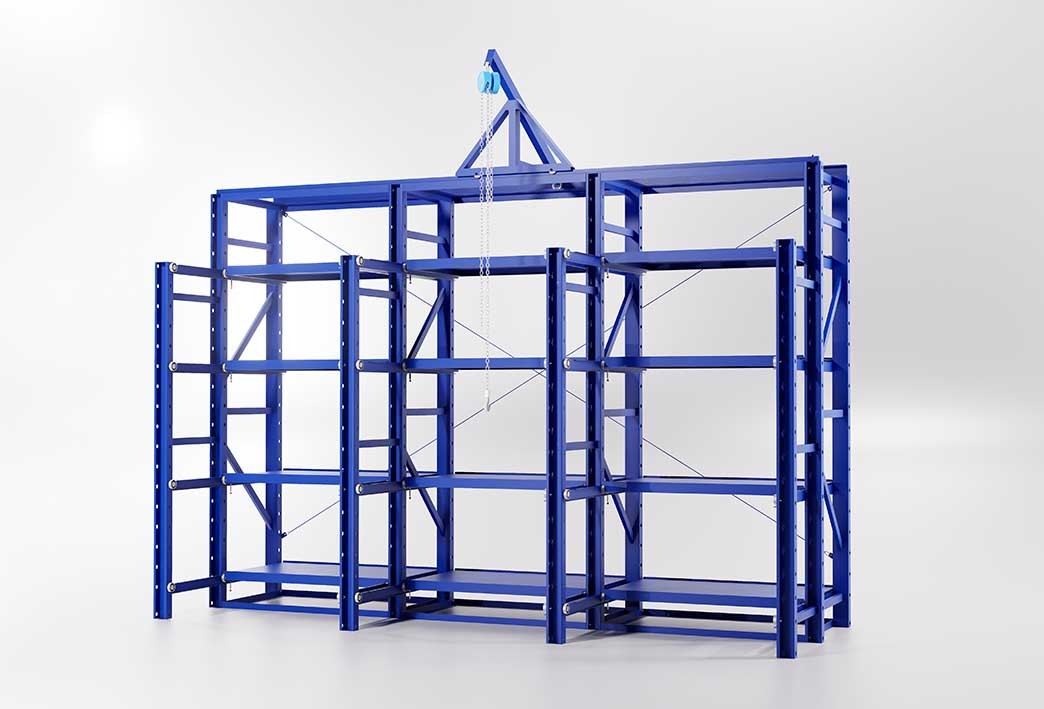

    Die Storage Rack, also known as DIE RACK or drawer DIE RACK, are suitable for storing all kinds of moulds and other heavy objects, drawer structure, layer height 50~100mm can be adjusted up and down, the top is equipped with a hand-pulled mobile car for easy access to the train, and the bottom of the drawer is equipped with a roller track, which still allows easy pulling of loaded goods.

    模具货架

    Product Details

    Product Features

    1.Combination assembly, mainly by the column piece, guide groove, drawer layer, pull rod, positioning pin, etc., using bolt connection, stable structure, safe and reliable, generally used in rows.

    2.Drawer tray is mainly composed of slide rail and drawer tray. The drawer tray consists of a frame welded with bent parts and a steel plate. Each slide is fixed by two bearings at the front and back, and can be rolled freely in the guiding groove with low resistance, so that the drawer can be pulled out easily.

    3.The drawer tray of the DIE RACK is designed with positioning pins and limit pins for safety reasons to ensure the safety of the drawer tray when it is withdrawn.

    4.Light Die  Rack layer load in 200 kgto 800kg/layer. Heavy duty drawer type racking layer load: 800kg to 1500kg/layer.

    5.Die Rack occupy less space, layer weight, detailed classification, simple operation.

    6.Die Storage Rack can also do drawer tray on the beam of the cargo space type racking, cost and saving, more stable structure. Keywords: mould racking

  • Load capacity 500kg~3000kg/layer, customised on request
    Product Classification Drawer type, full open type, standard type, heavy type, stretching type, can be customised according to customers' requirements.
    Pick-up method Manual pick-up
    Product Colour Orange, Blue, White, Customizable
    Access Requirements No Special Requirements
    Warehouse Requirements Good floor levelling
    Application Storage of various moulds and other heavy objects
    Product Advantages Small footprint, large layer capacity, detailed classification, easy operation
    Structure Column piece, drawer plate, drawer slide, pull rod, positioning pin
  • F:What are the terms of your deal?

    Q:1.Payment terms: T/T 30% deposit upon order confirmation, 70% balance upon bill of lading. Or L/C.

     2.Delivery time: normally within 30 days of receipt of deposit.

     3.Sample Policy: Samples are always available for each model. Samples can be ready within 7-15 days after payment is received.

     4.Port of shipment: Shanghai, China.

     5.Discounts: We offer discounts for large quantities.


    F:How do I deliver my goods?

    Q:1.Sea freight: Once we know the seaport where you will deliver the goods, we will update the sea freight charges.

     2.Customer Nominated Agent: Please let us know the contact information of your shipping agent and we will arrange for delivery of the items.


    F:What are your services?

    Q:1.We will respond to your inquiry about our products or prices within 24 hours.

     2.Trained and experienced staff answer all your inquiries in fluent English.

     3.OEM and ODM, any of your customized racks we can help you design your products.

     4.We have experienced and professional engineers to provide the best solution.


    F:How can I buy your products?

    Q:Design drawing→Confirm drawing→Quotation→PI→Confirm PI→Arrange 30% deposit→Manufacturer→QC inspection→Payment of balance→Delivery


    F:What are your strengths

    Q:1.Warranty: one year warranty, damaged parts will be replaced and sent to you.

     2.FACTORY PRICE: Factory direct competitive price.
